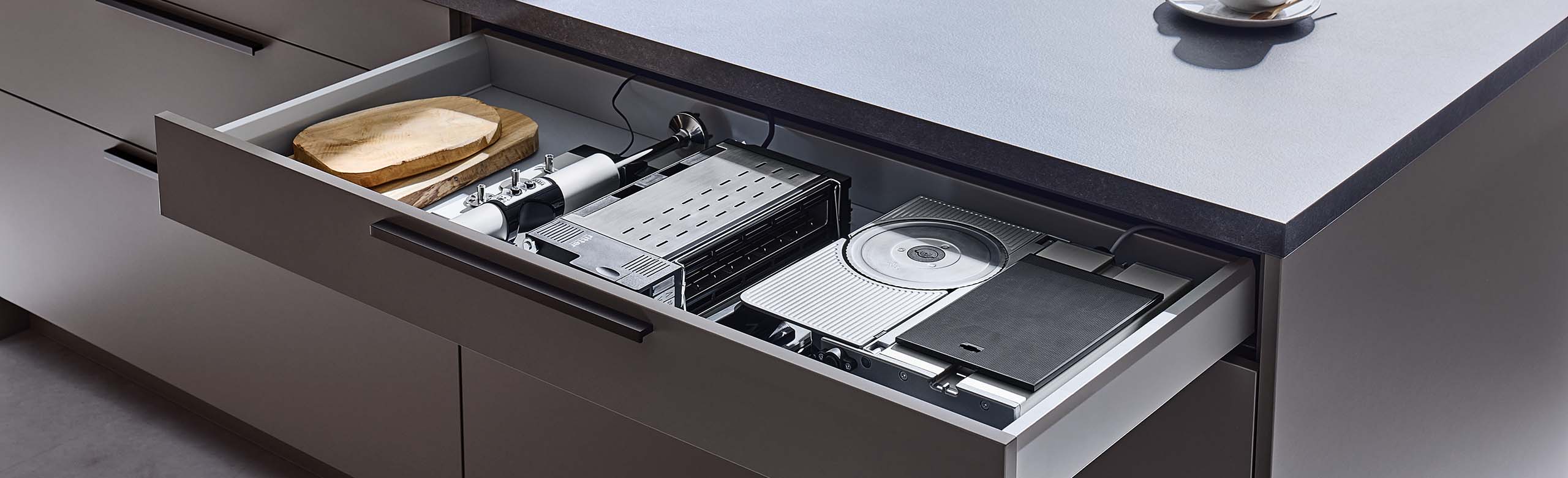

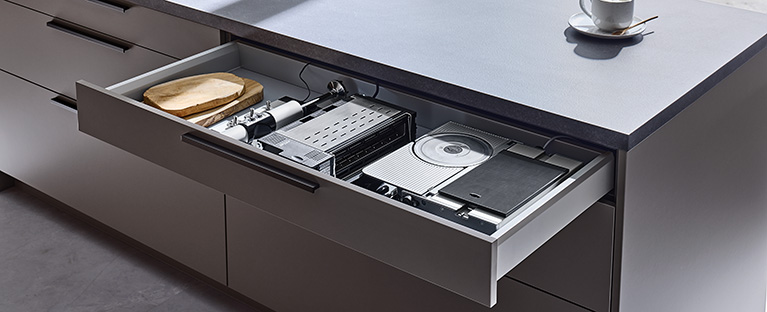

Built-in combinations – making good use of drawer space

The built-in systems from ritter are already a real attraction in every kitchen as stand-alone units. However, the space-savers can also be combined. Depending on the drawer size, several units can be put together to form a built-in combination. In principle, all ritter built-in systems can be combined with each other, provided that the internal dimensions and other installation requirements (distance between bottom of drawer to top of worktop, sufficient space to the left or right of the drawer, etc.) in the kitchen are suitable.

Since it is difficult to answer the question of the best combination of our built-in devices without knowing the conditions of the kitchen (finished planning), we strongly recommend consulting your kitchen planner to ensure that the devices really fit.

Here we show you all the possible, sensible, practical and space-saving built-in combinations of our devices in drawers.

Combinations with built-in food slicer (standard version)

These combinations of devices can be installed in all standard drawers. Please note that the distance between the drawer bottom and the top of the worktop should not exceed 160 mm, as large pieces of food may have to be pushed over the worktop to be sliced.

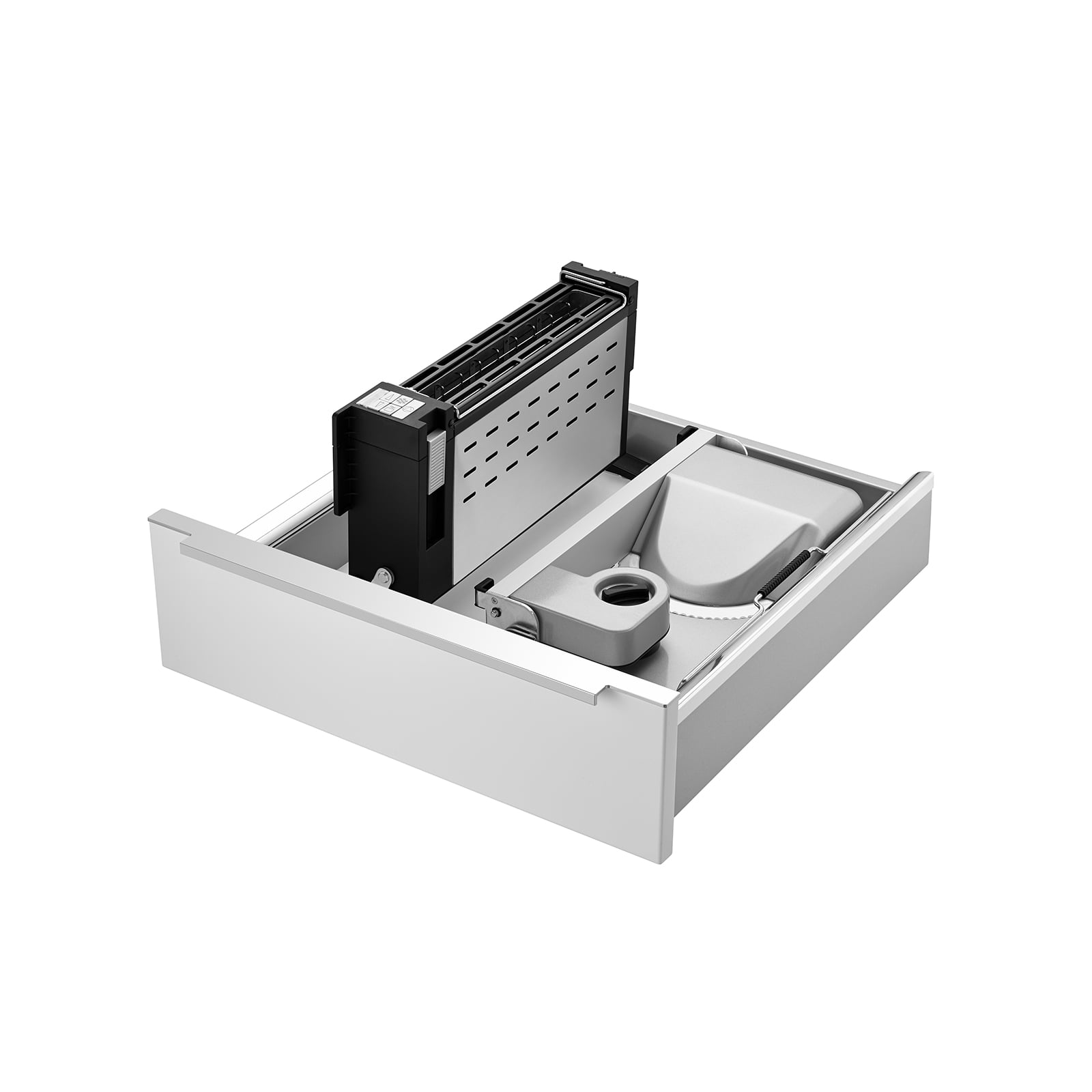

Built-in toaster BT 10 + Built-in food slicer BFS 52 S

Clear width drawer: min. 388 mm

Clear height drawer: min. 80 mm

Distance bottom of drawer to top of worktop: max. 160 mm

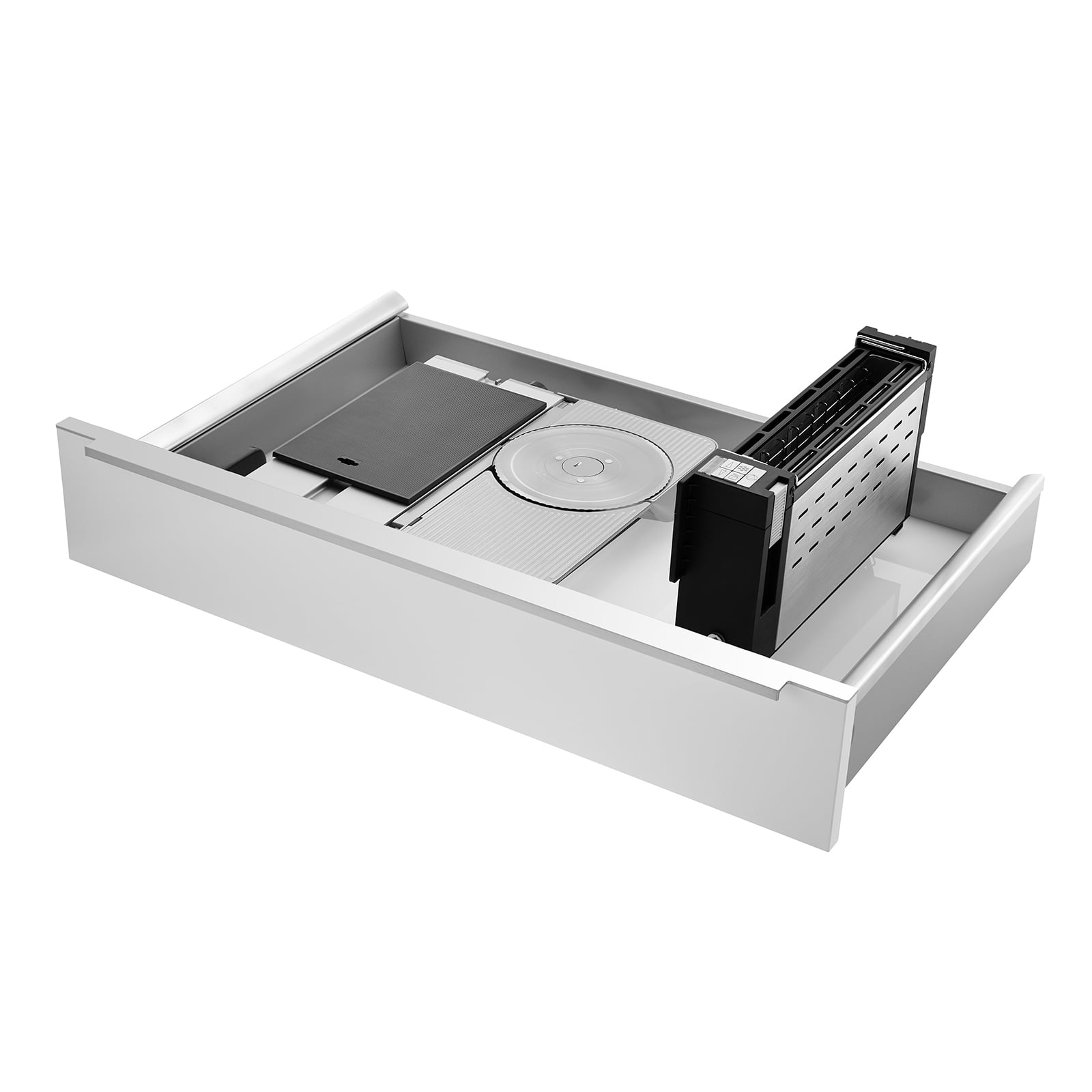

Built-in toaster BT 10 + Built-in food slicer BFS 62 SL

Clear width drawer: min. 535 mm

Clear height drawer: min. 75 mm

Distance bottom of drawer to top of worktop: max. 160 mm

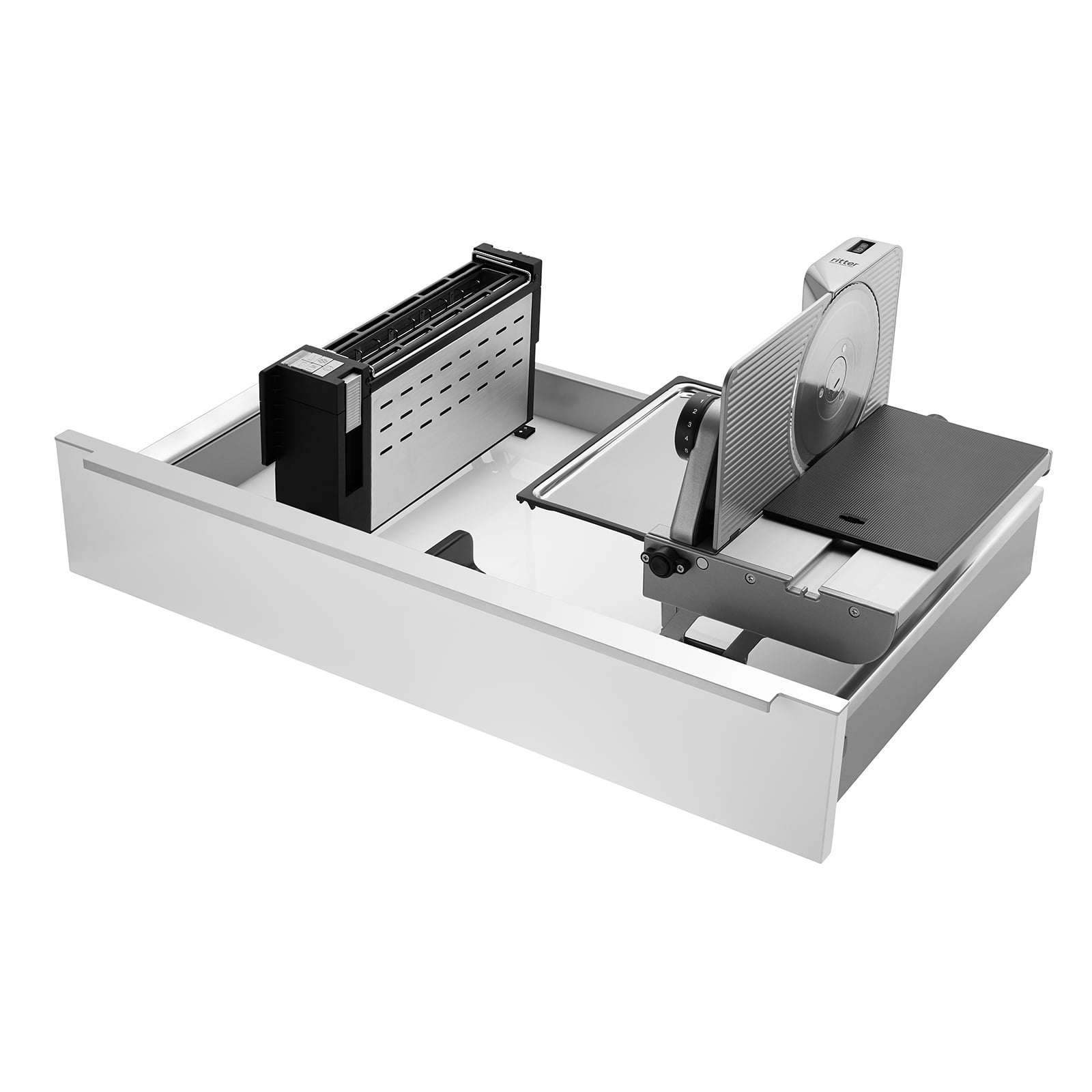

Built-in toaster BT 10 + Built-in food slicer BFS 62 SR

Clear width drawer: min. 535 mm

Clear height drawer: min. 75 mm

Distance bottom of drawer to top of worktop: max. 160 mm

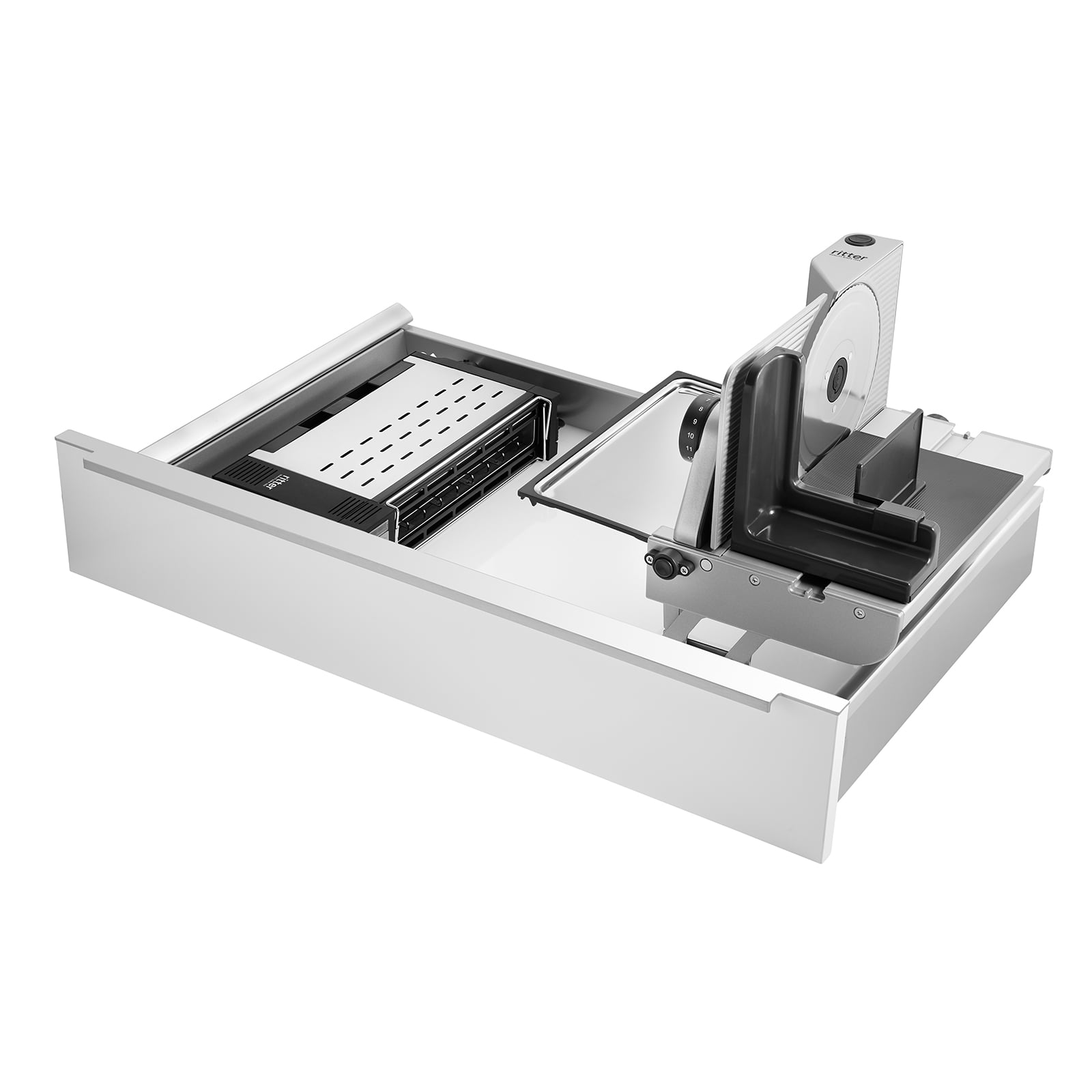

Built-in toaster BT 10 + Built-in food slicer BFS 72 SR

Clear width drawer: min. 535 mm

Clear height drawer: min. 75 mm

Distance bottom of drawer to top of worktop: max. 160 mm

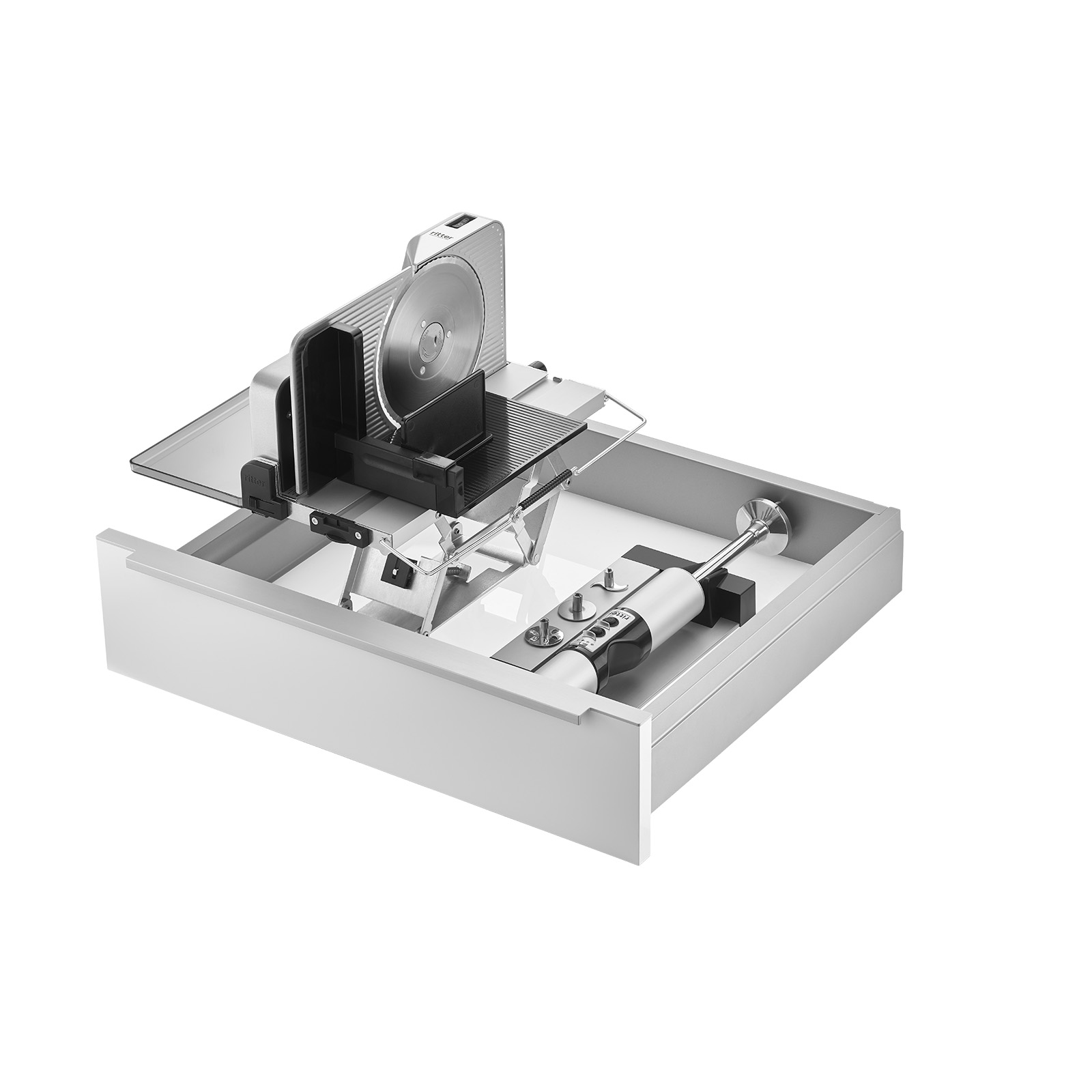

Built-in hand blender BHB 50 + Built-in food slicer BFS 52 S

Clear width drawer: min. 348 mm

Clear height drawer: min. 79 mm

Distance bottom of drawer to top of worktop: max. 160 mm

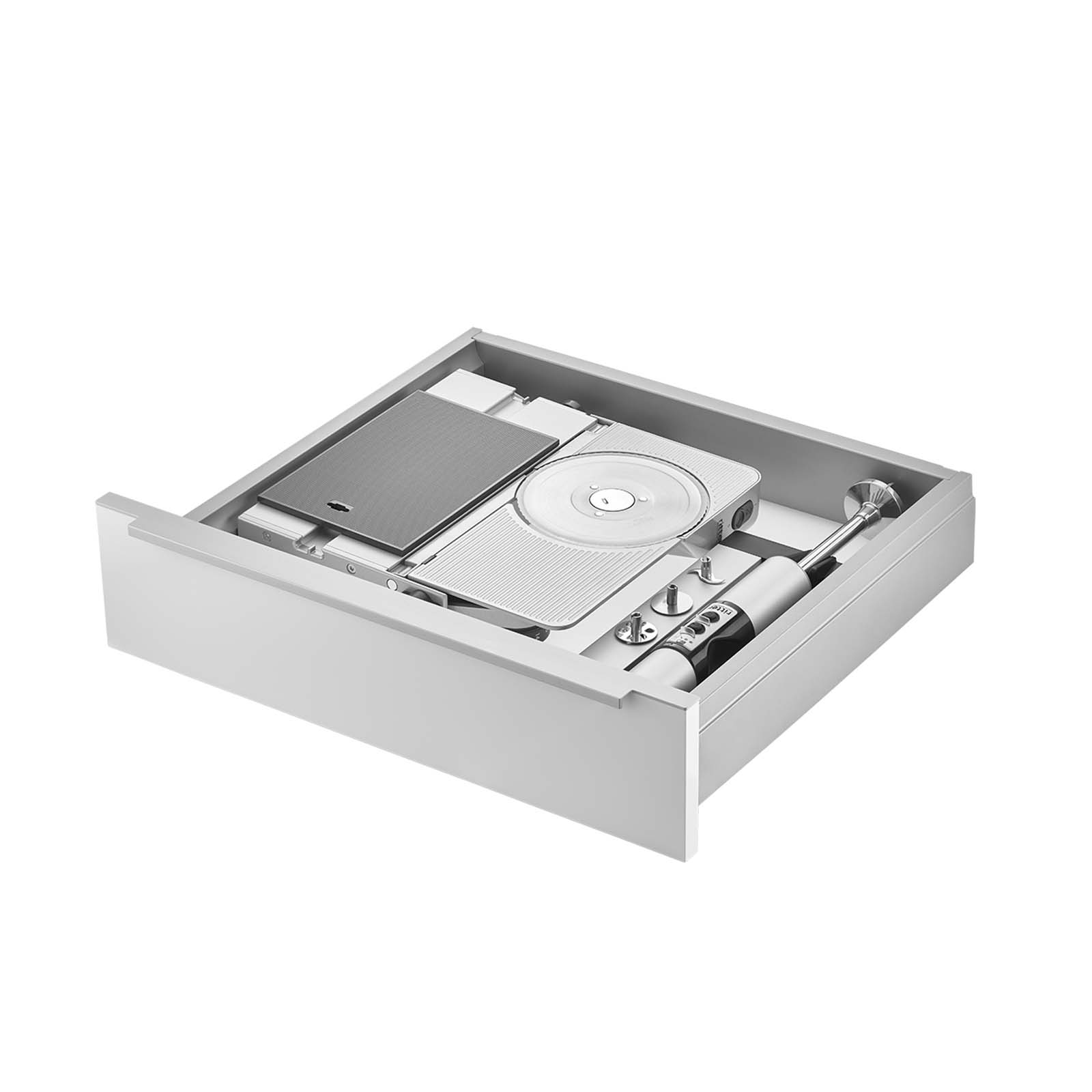

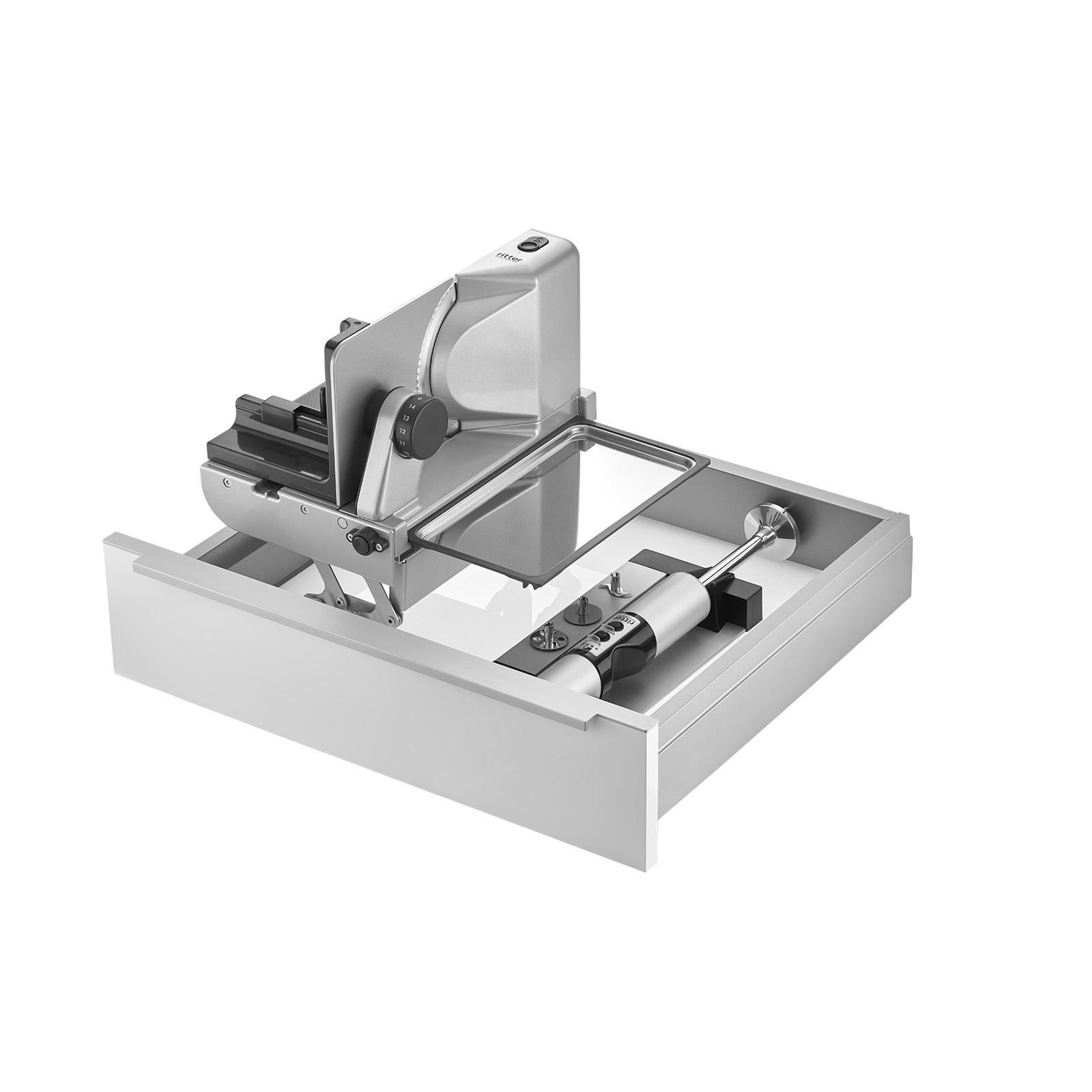

Built-in hand blender BHB 50 + Built-in food slicer BFS 62 SL

Clear width drawer: min. 495 mm

Clear height drawer: min. 79 mm

Distance bottom of drawer to top of worktop: max. 160 mm

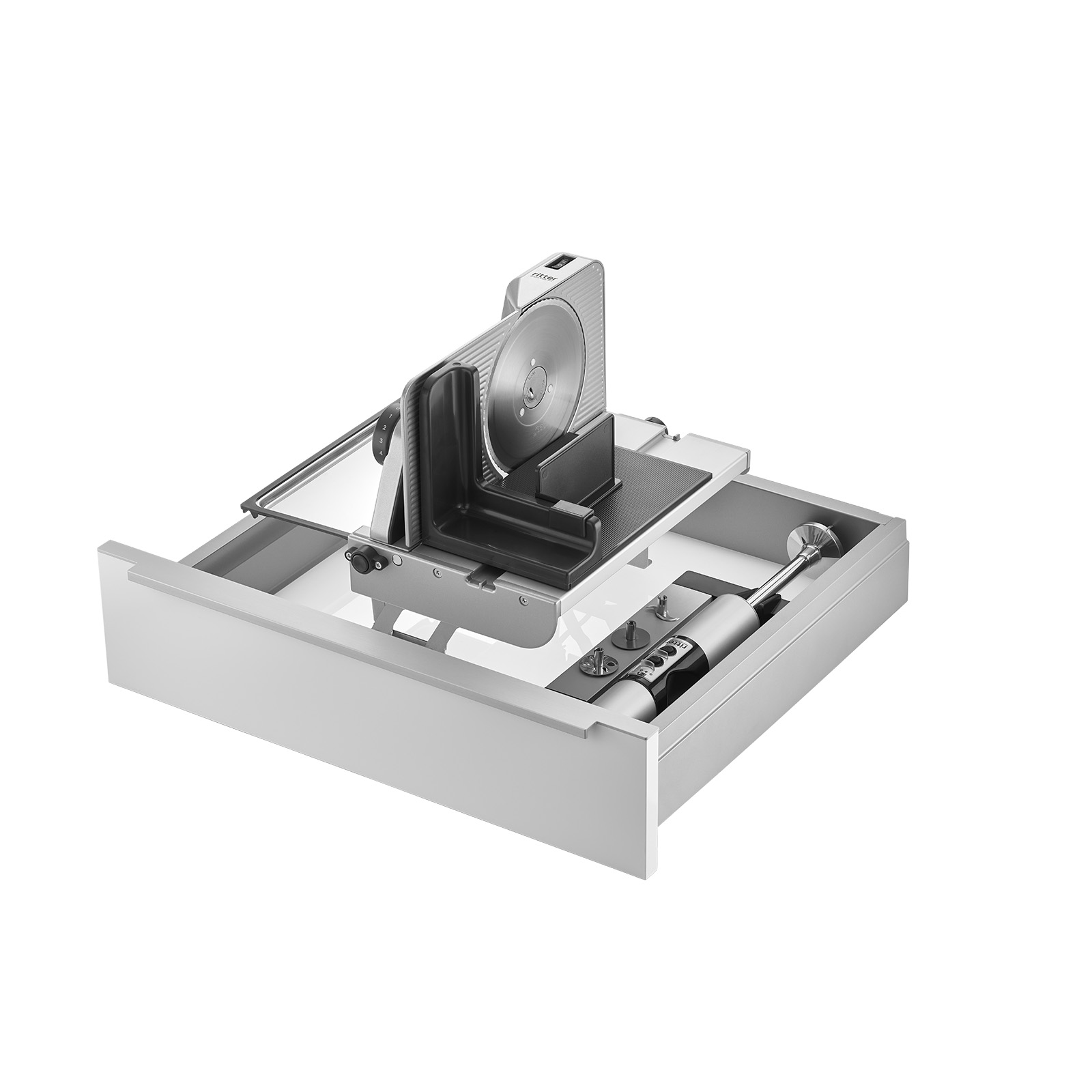

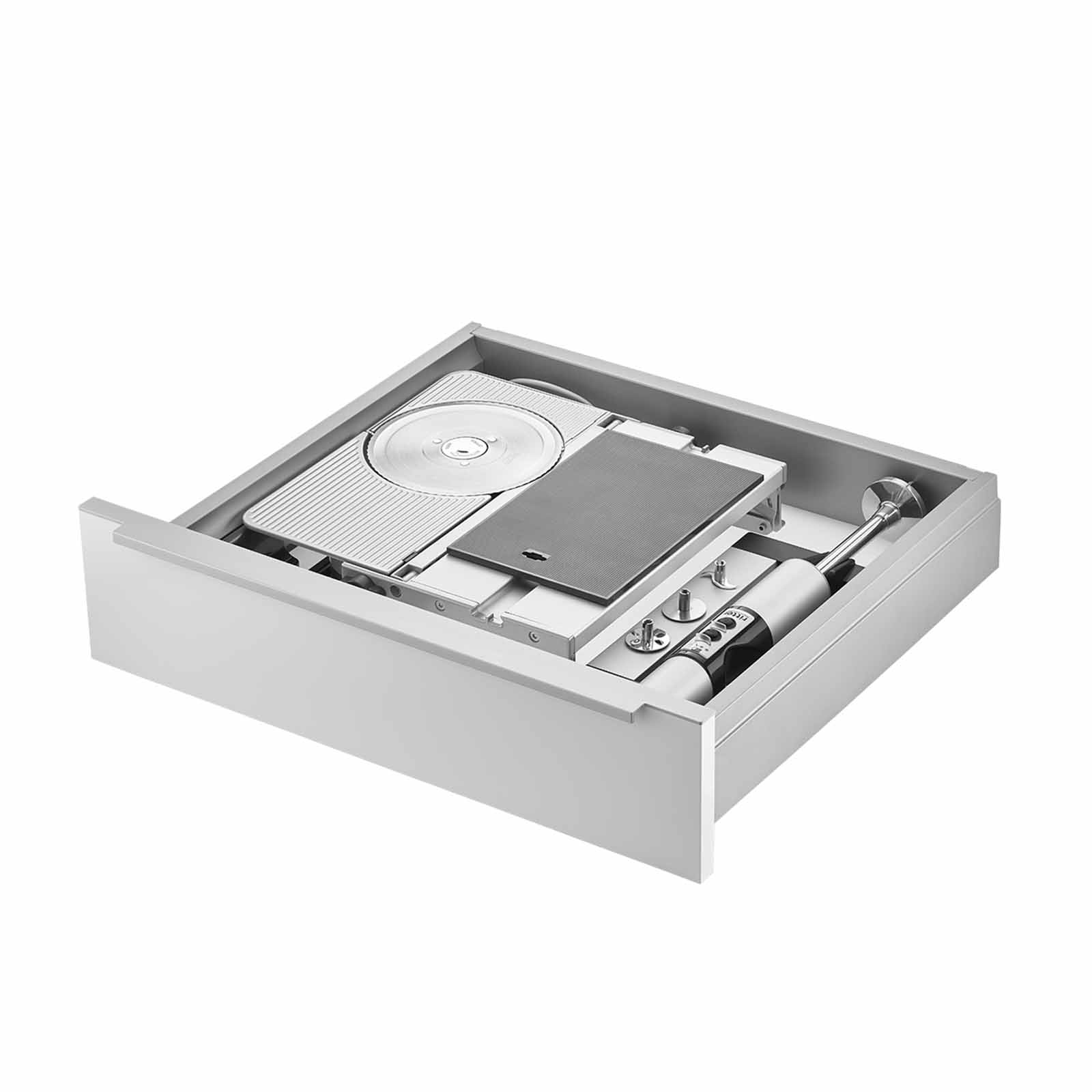

Built-in hand blender BHB 50 + Built-in food slicer BFS 62 SR

Clear width drawer: min. 495 mm

Clear height drawer: min. 79 mm

Distance bottom of drawer to top of worktop: max. 160 mm

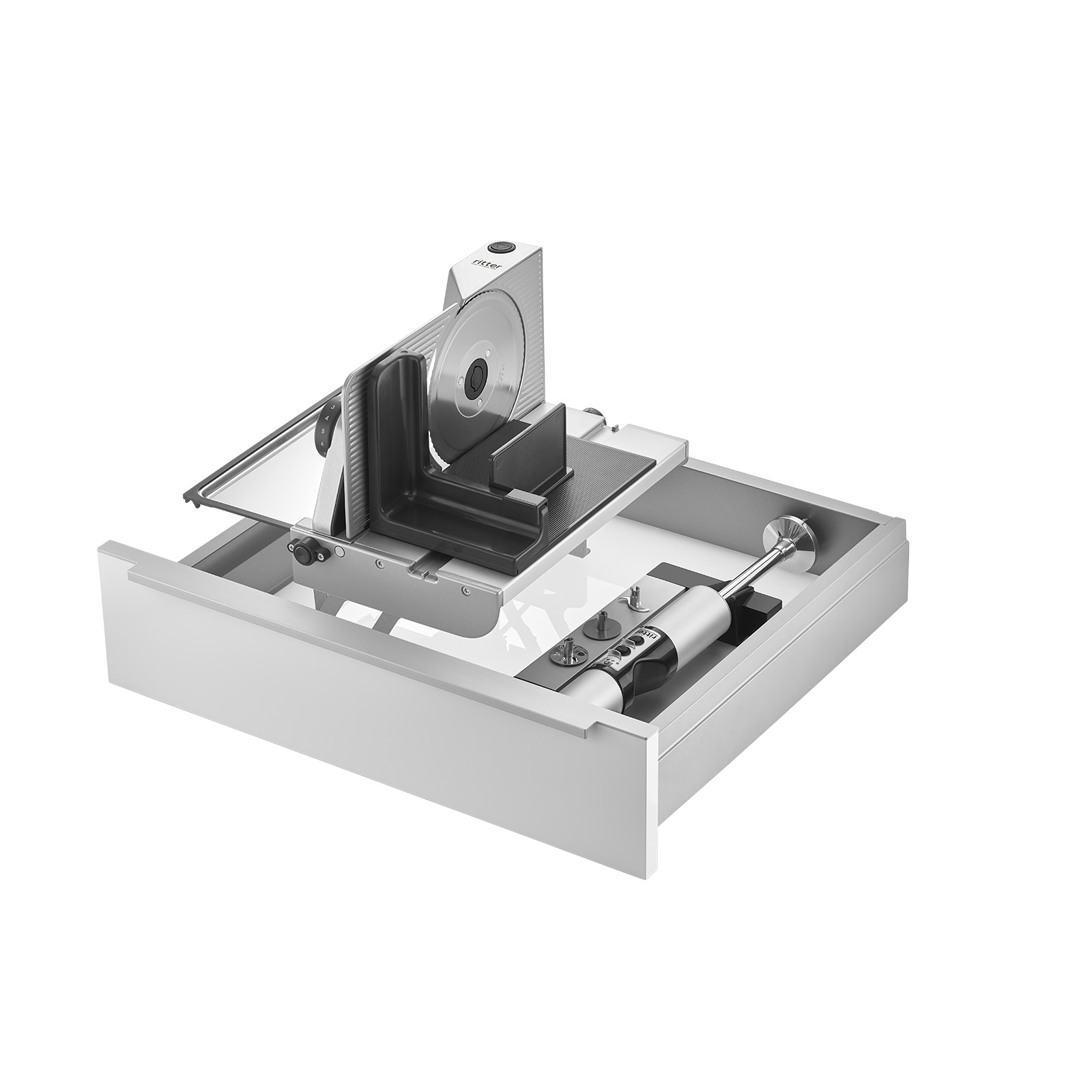

Built-in hand blender BHB 50 + Built-in food slicer BFS 72 SR

Clear width drawer: min. 495 mm

Clear height drawer: min. 79 mm

Distance bottom of drawer to top of worktop: max. 160 mm

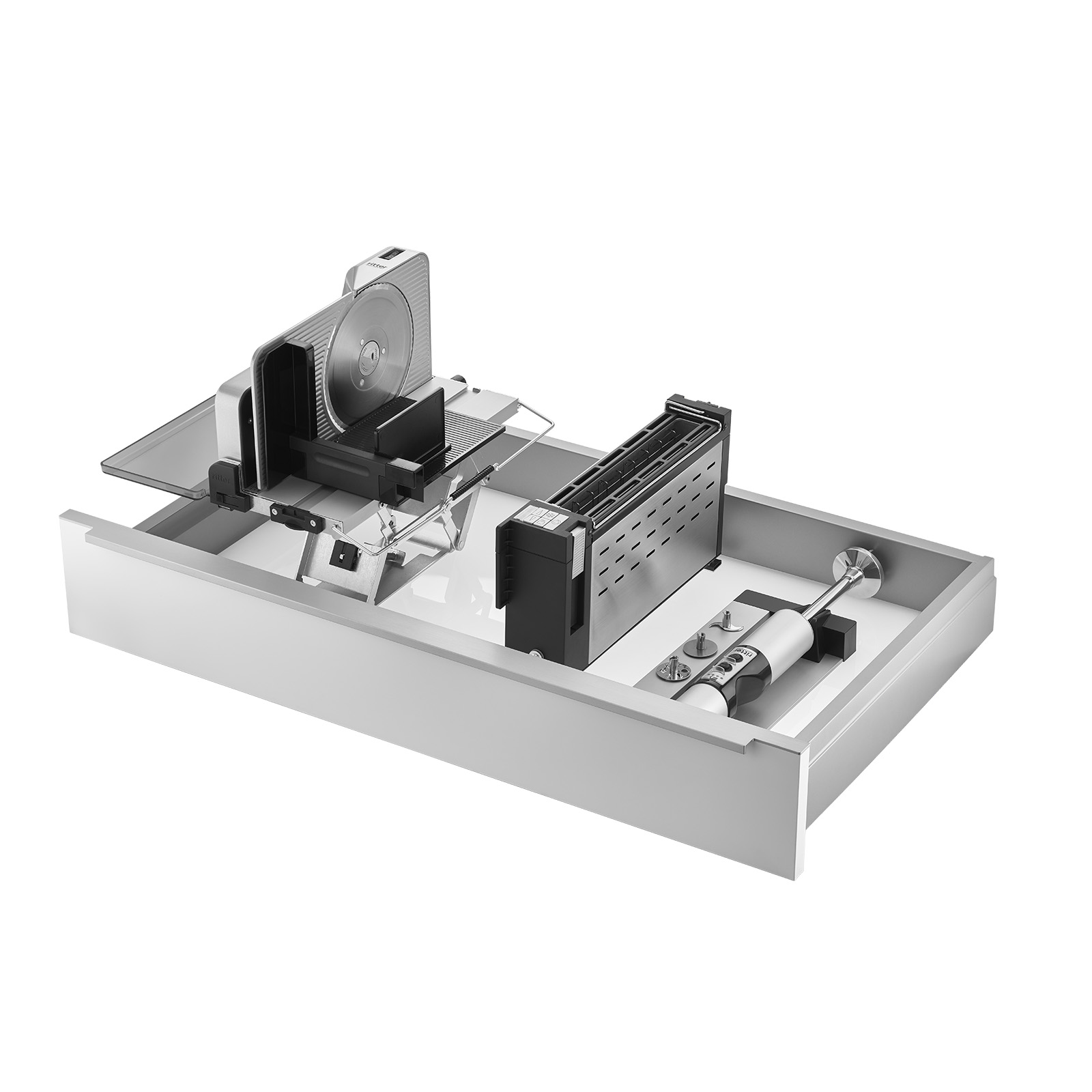

Built-in toaster BT 10 + Built-in hand blender BHB 50 + Built-in food slicer BFS 52 S

Clear width drawer: min. 678 mm

Clear height drawer: min. 79 mm

Distance bottom of drawer to top of worktop: max. 160 mm

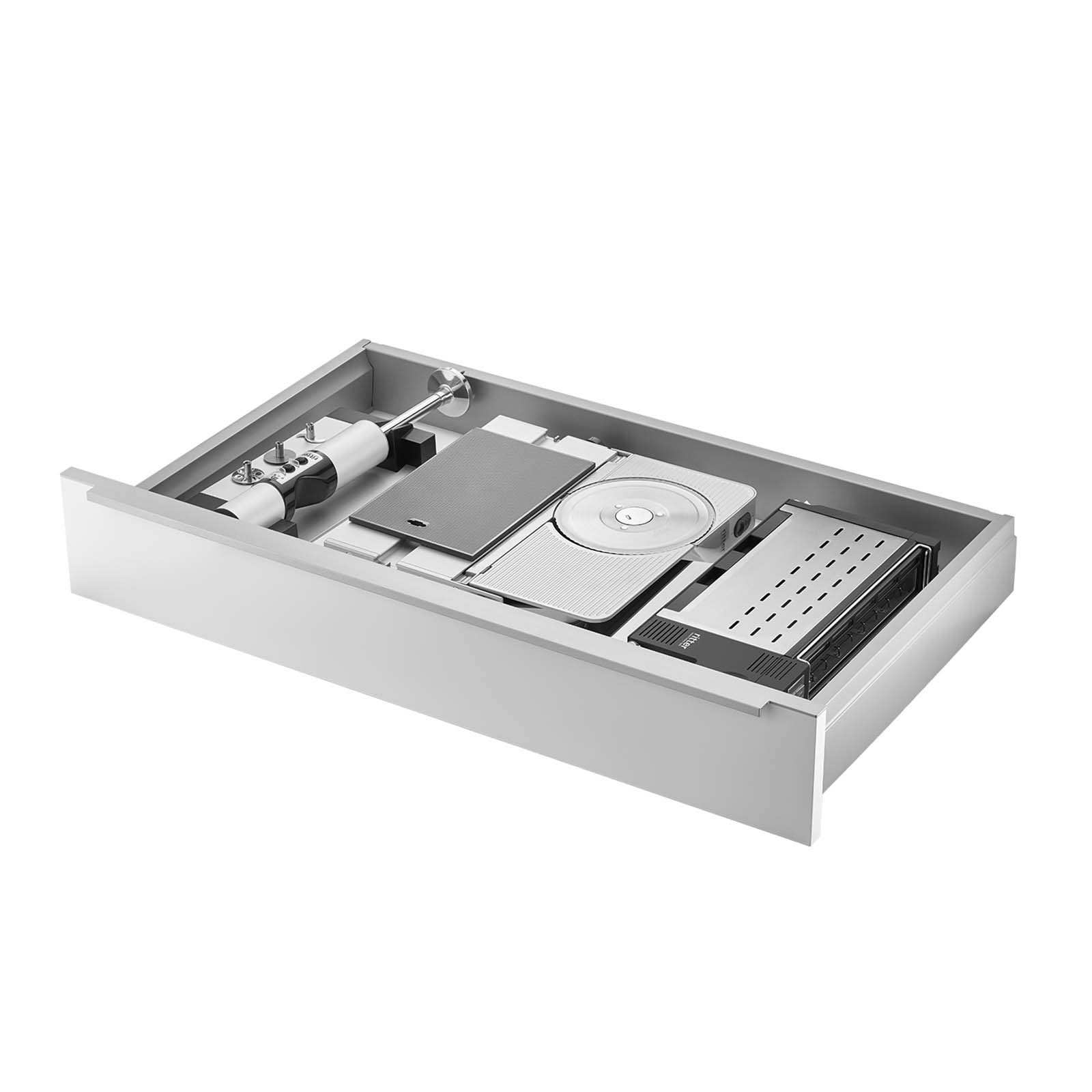

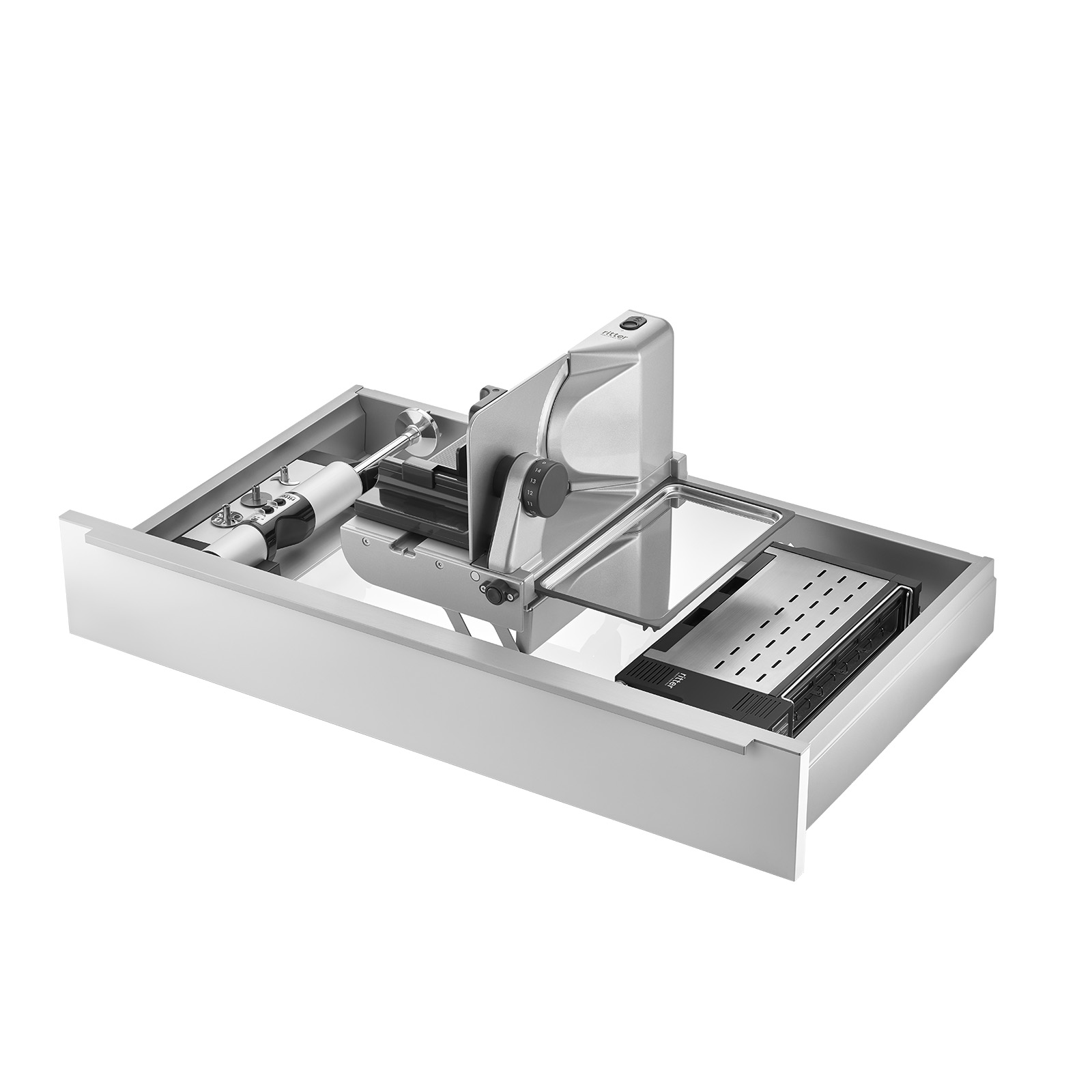

Built-in toaster BT 10 + Built-in hand blender BHB 50 + Built-in food slicer BFS 62 SL

Clear width drawer: min. 678 mm

Clear height drawer: min. 75 mm

Distance bottom of drawer to top of worktop: max. 160 mm

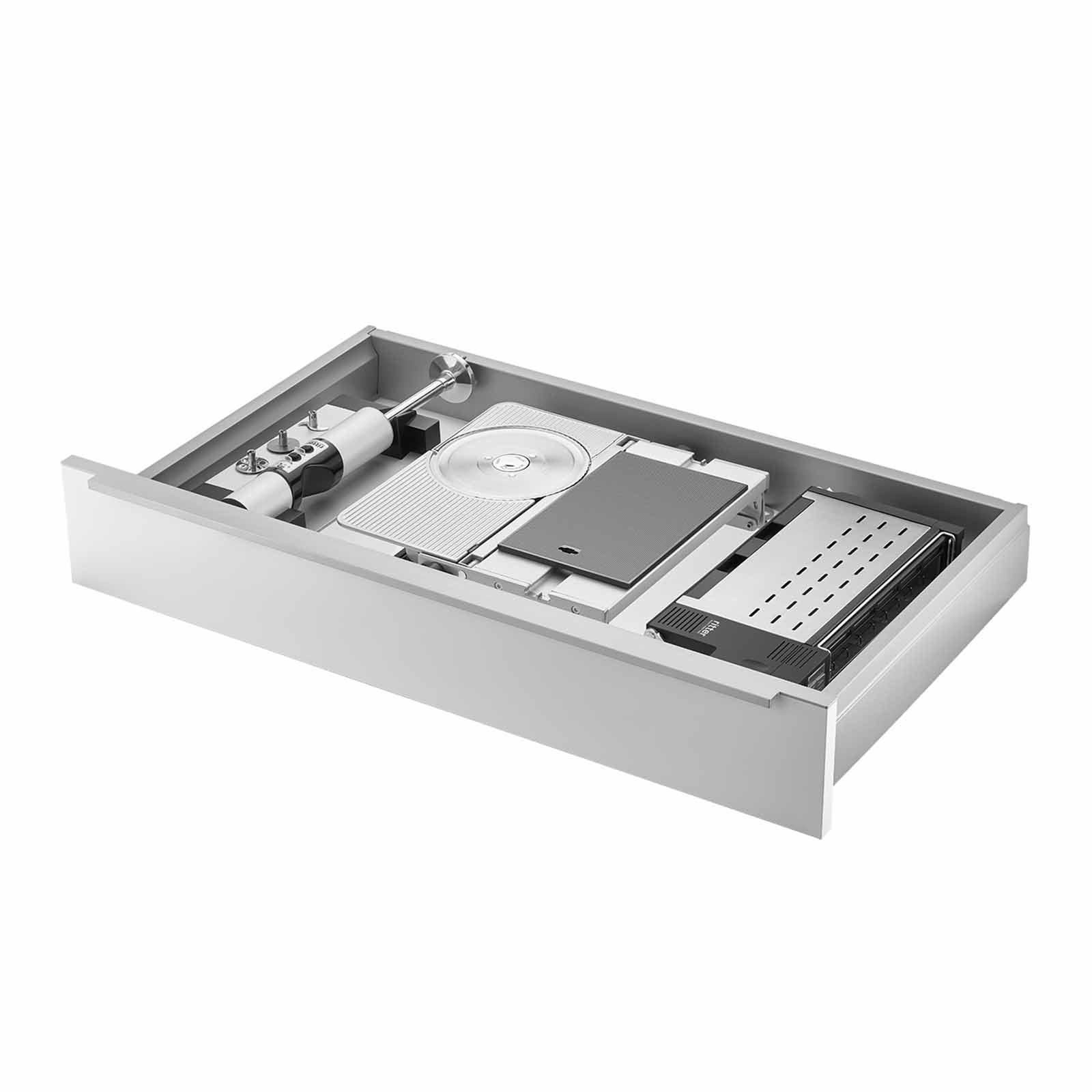

Built-in toaster BT 10 + Built-in hand blender BHB 50 + Built-in food slicer BFS 62 SR

Clear width drawer: min. 678 mm

Clear height drawer: min. 75 mm

Distance bottom of drawer to top of worktop: max. 160 mm

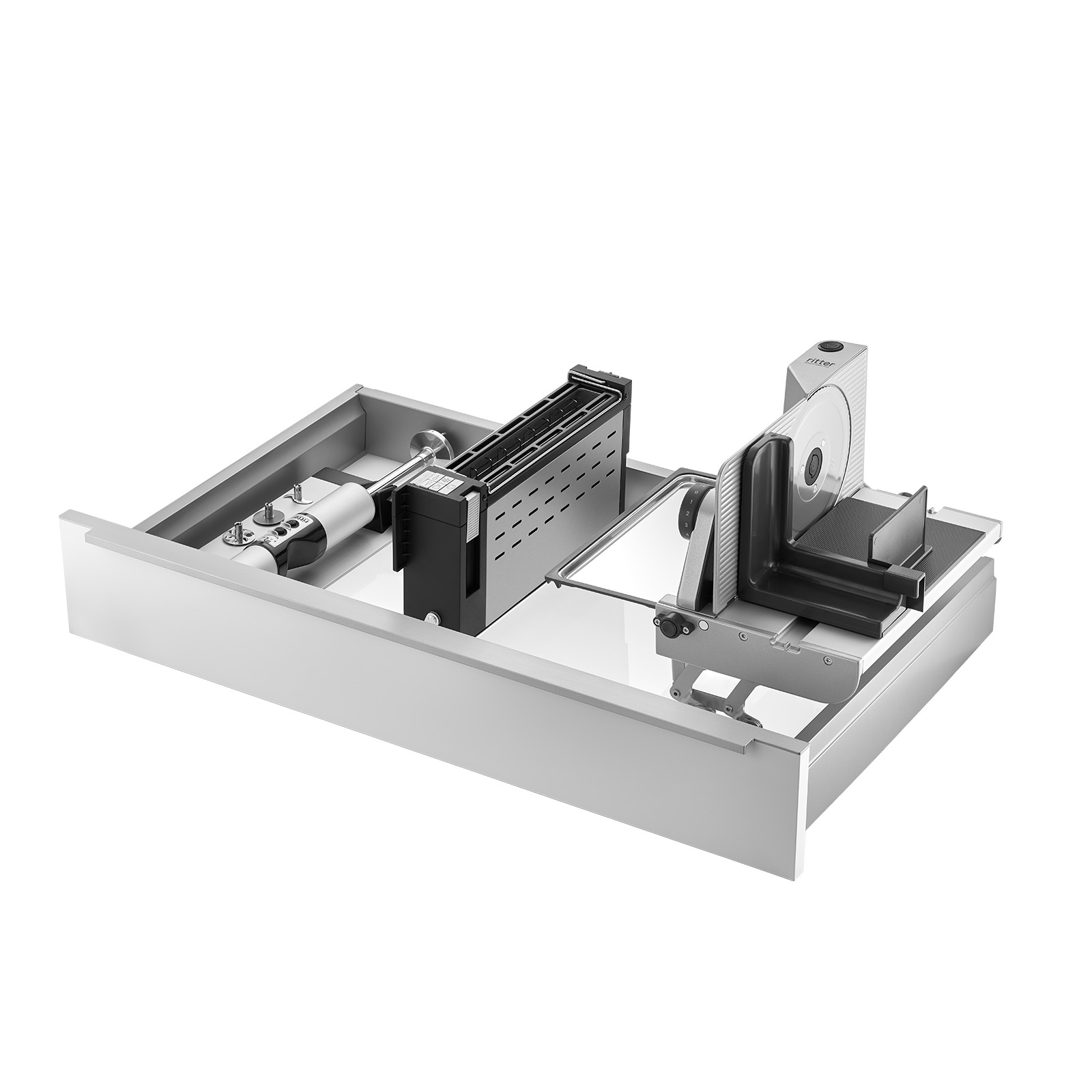

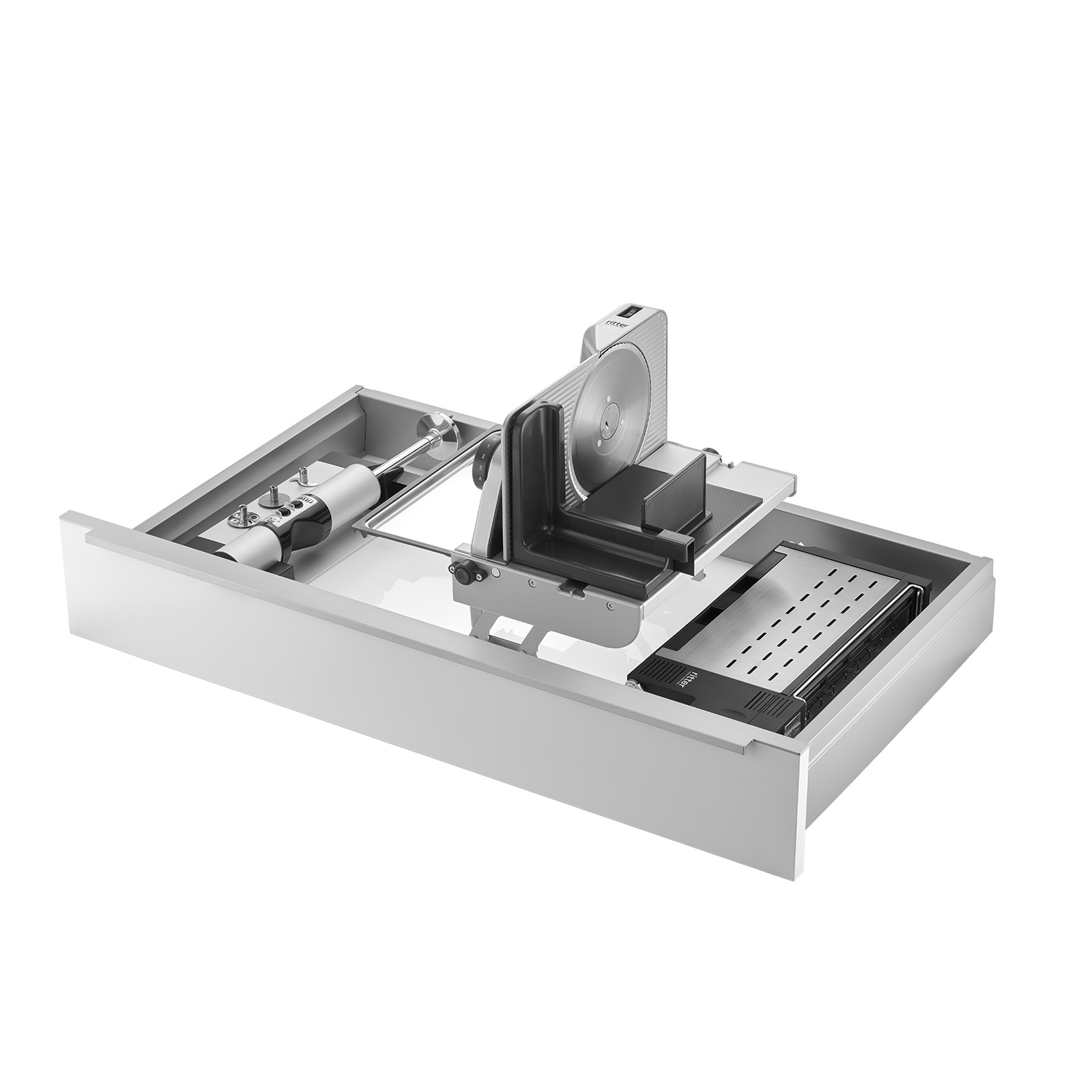

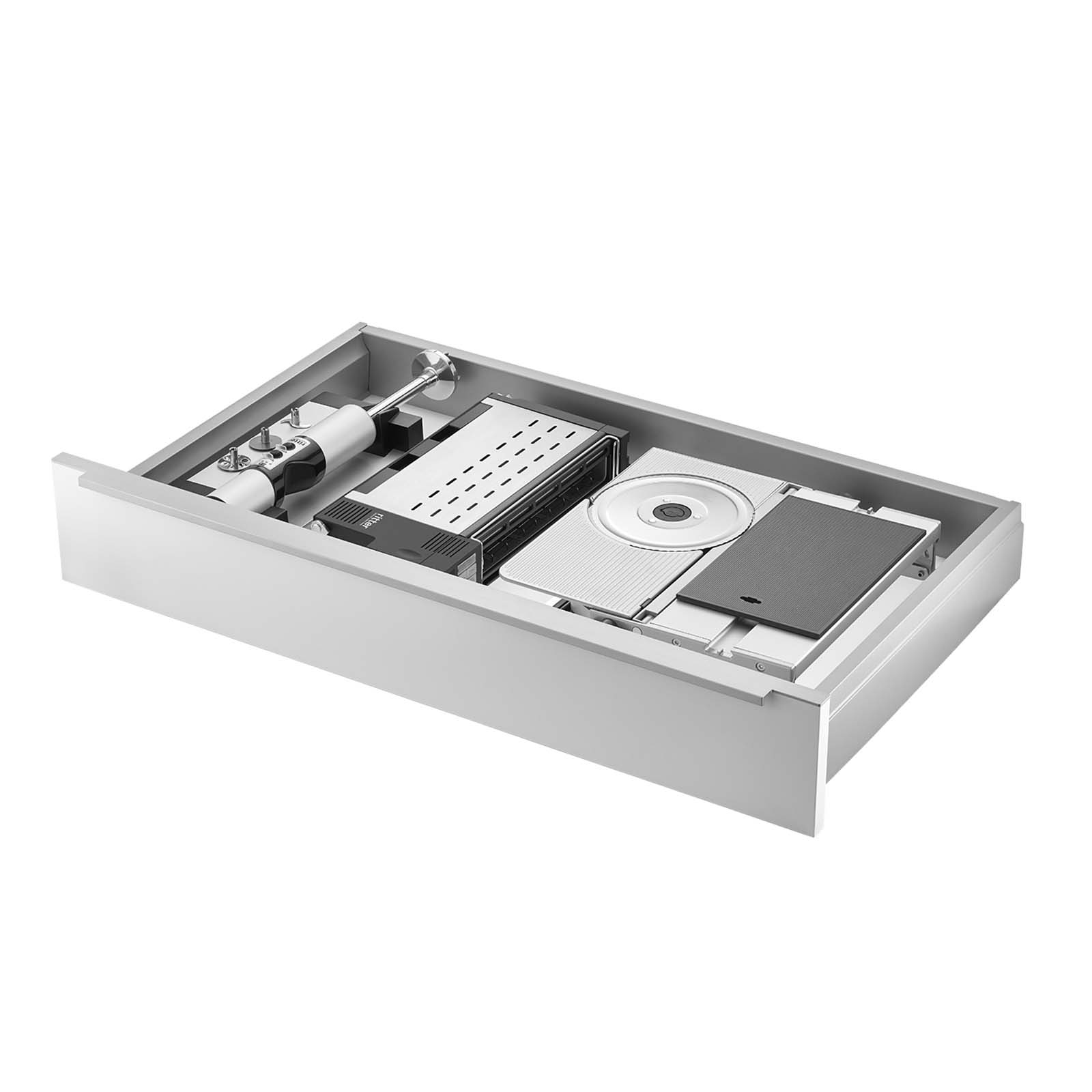

Built-in toaster BT 10 + Built-in hand blender BHB 50 + Built-in food slicer BFS 72 SR

Clear width drawer: min. 678 mm

Clear height drawer: min. 75 mm

Distance bottom of drawer to top of worktop: max. 160 mm

Combinations with built-in food slicer (high mount)

The combinations with the high mount versions of the food slicers are intended for handleless kitchens with a recessed grip (C or L profile), reinforced worktops and deep drawers (internal drawers etc.). If the distance between the drawer bottom and the top of the worktop is greater than 160 mm, these combinations are just right.







Built-in toaster BT 10 + Built-in food slicer BFS 62 SL-H
(only required if the distance between drawer bottom and top of worktop > 160 mm)

Clear width drawer: min. 583 mm

Clear height drawer: min. 75 mm

Distance bottom of drawer to top of worktop: max. 210 mm







Built-in toaster BT 10 + Built-in food slicer BFS 62 SR-H
(only required if the distance between drawer bottom and top of worktop > 160 mm)

Clear width drawer: min. 583 mm

Clear height drawer: min. 75 mm

Distance bottom of drawer to top of worktop: max. 210 mm







Built-in toaster BT 10 + Built-in food slicer BFS 72 SR-H
(only required if the distance between drawer bottom and top of worktop > 160 mm)

Clear width drawer: min. 583 mm

Clear height drawer: min. 75 mm

Distance bottom of drawer to top of worktop: max. 210 mm







Built-in hand blender BHB 50 + Built-in food slicer BFS 62 SL-H
(only required if the distance between drawer bottom and top of worktop > 160 mm)

Clear width drawer: min. 533 mm

Clear height drawer: min. 75 mm

Distance bottom of drawer to top of worktop: max. 210 mm









Built-in hand blender BHB 50 + Built-in food slicer BFS 62 SR-H
(only required if the distance between drawer bottom and top edge of worktop > 160 mm)

Clear width drawer: min. 543 mm

Clear height drawer: min. 75 mm

Distance bottom of drawer to top of worktop: max. 210 mm







Built-in hand blender BHB 50 + Built-in food slicer BFS 72 SR-H
(only required if the distance between drawer bottom and top of worktop > 160 mm)

Clear width drawer: min. 543 mm

Clear height drawer: min. 75 mm

Distance bottom of drawer to top of worktop: max. 210 mm









Built-in toaster BT 10 + Built-in hand blender BHB 50 + Built-in food slicer BFS 62 SL-H
(only required if the distance between drawer bottom and top of worktop > 160 mm)

Clear width drawer: min. 726 mm

Clear height drawer: min. 75 mm

Distance bottom of drawer to top of worktop: max. 210 mm









Built-in toaster BT 10 + Built-in hand blender BHB 50 + Built-in food slicer BFS 62 SR-H
(only required if the distance between drawer bottom and top of worktop > 160 mm)

Clear width drawer: min. 726 mm

Clear height drawer: min. 75 mm

Distance bottom of drawer to top of worktop: max. 210 mm







Built-in toaster BT 10 + Built-in hand blender BHB 50 + Built-in food slicer BFS 72 SR-H
(only required if the distance between drawer bottom and top of worktop > 160 mm)

Clear width drawer: min. 726 mm

Clear height drawer: min. 75 mm

Distance bottom of drawer to top of worktop: max. 210 mm

Combinations without built-in food slicer

These devices can be combined in all drawers regardless of the distance to the top of the worktop. These built-in combinations can also be easily integrated into tall cabinets with drawers. The only requirement is that the clear width and depth meet the minimum requirements.











Built-in toaster BT 10 + Built-in hand blender BHB 50

Clear width drawer: min. 331 mm

Clear height drawer: min. 79 mm



Combinations with the built-in vacuum cleaner

Built-in vacuum cleaner BVC 10

Each of the above-mentioned built-in combinations can be combined with the built-in vacuum cleaner BVC 10 (+ optional accessory), which can be quickly and easily mounted in the skirting board.

The prerequisite is front panel height of at least 105 mm and an available clear width of at least 342 mm.

Important information:

The dimensions given are minimum dimensions. It is advisable to plan a bit more generously here to make it easier to use and clean the devices.

If the distance between the bottom of the drawer and the top of the worktop in your chosen kitchen is higher than 210 mm, the devices (especially the built-in food slicers) can also be underlaid with base plates, but this requires more clear height. For information, visit installation-notes.

Do you have any questions about the built-in combinations or installing our devices? Then the best thing to do is to contact us directly. Our installation specialists will also be happy to advise you by phone on: (+49 8142) 440 16-60. We look forward to hearing from you.
